Nissan S13 240SX / Silvia / 180SX Rear USB Adapter Kit

Nissan S13 240SX / Silvia / 180SX Rear USB Adapter Kit

$69.99 USD
$69.99 USD
Sale Sold out

S13 Rear USB Adapter Kit

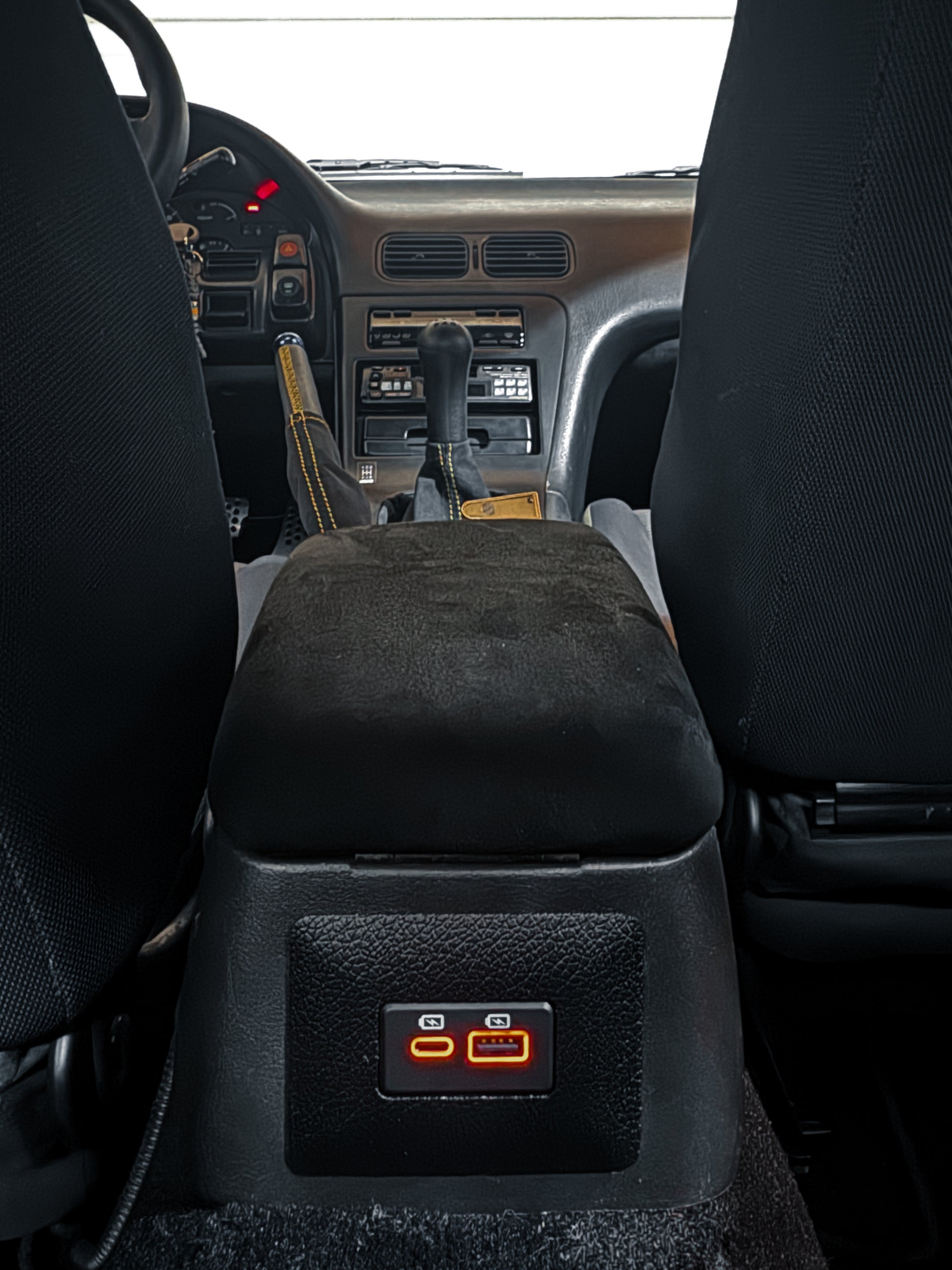

Introducing our highly anticipated S13 Rear USB Adapter Kit. Designed specifically for the S13, our kit allows you to install a genuine OEM Nissan USB port in the factory rear ashtray location.

There is no cutting required, and wiring is straightforward with only two splices into a 12v source.

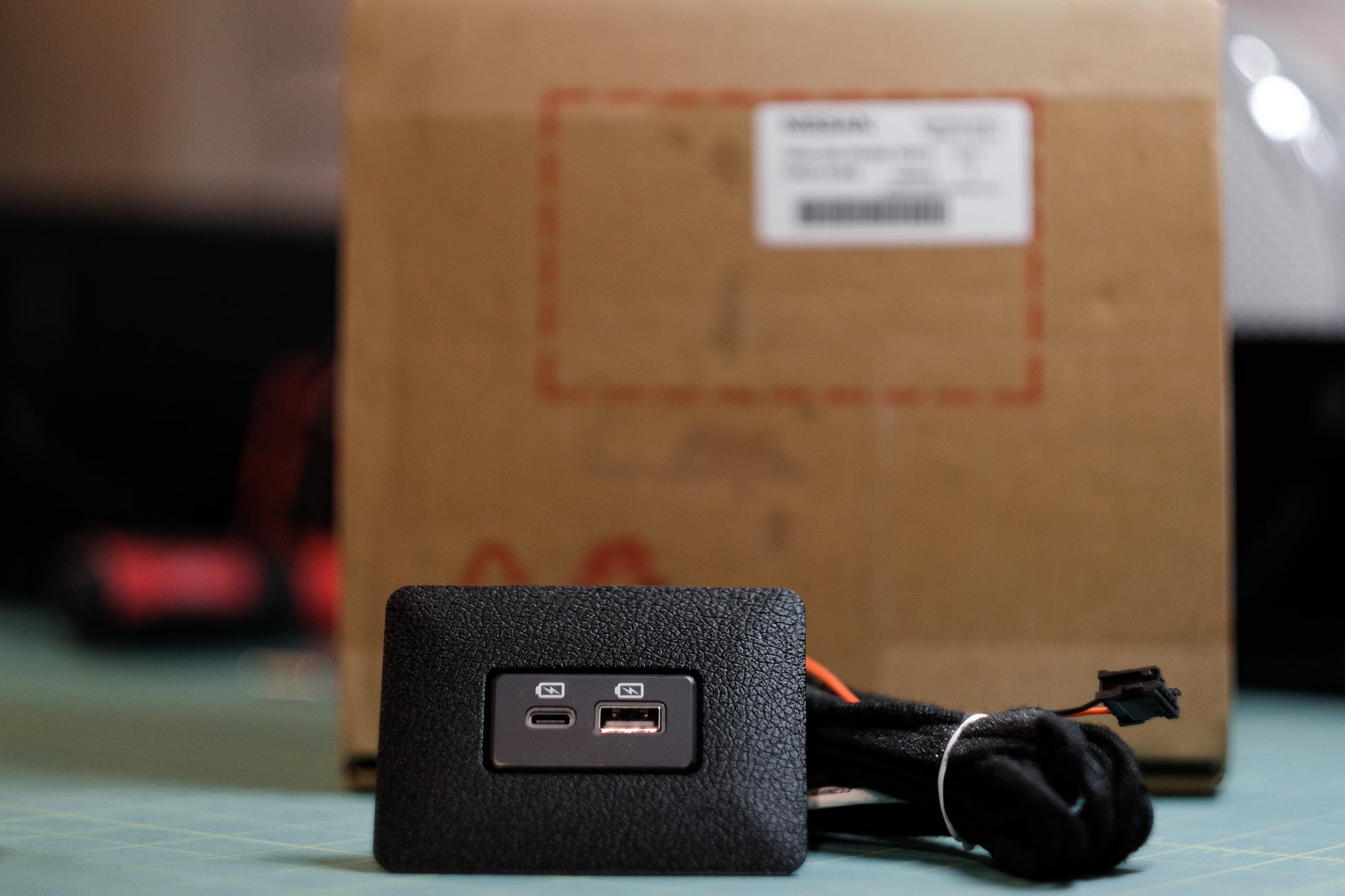

Each kit will include:

  • 1x Textured Adapter Plate
  • 1x OEM Nissan USB installation kit consisting of:
    • USB Charger
    • Wiring Harness

Note: Each adapter plate is hand-finished and painted in-house. Due to the manufacturing process, minor surface variation may be present between pieces.

Brief Installation Overview:

  • Remove the rear ashtray by pressing the center tab
  • Remove the two screws securing the factory ashtray bracket
  • Route and splice wiring to your preferred 12V source (the cigarette lighter circuit works well)
  • Feed wiring through the adapter plate
  • Install the plate starting with the top tab, then press in from left to right

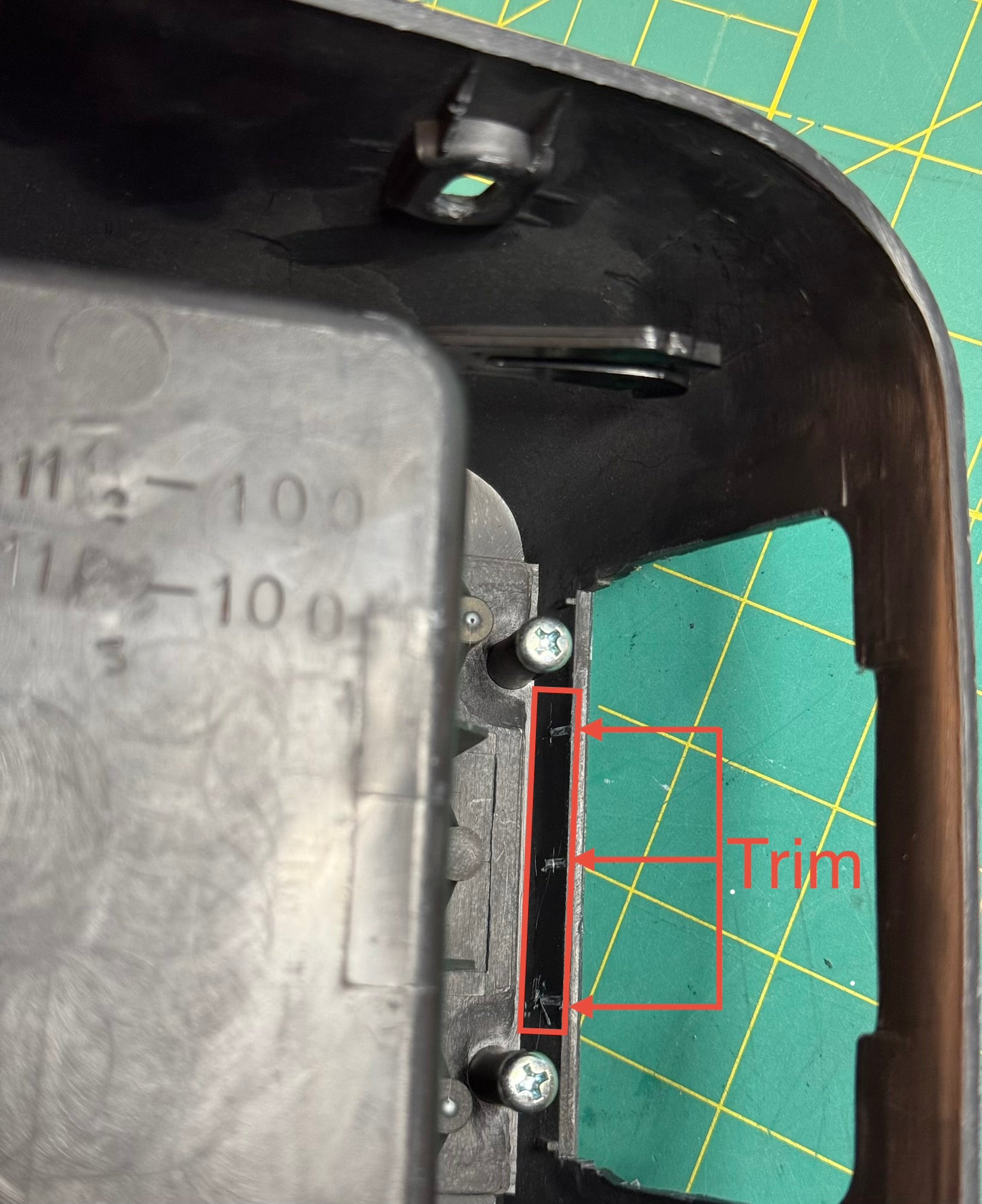

    • Note: some center consoles will have small tabs that will need to be trimmed flush before installing the plate
    • Fitment is intentionally tight for a secure install
    • Do not force the plate
  • Plug in the USB port and snap it into the adapter plate from left to right

Confirmed Vehicle Fitment

  • 1989-1994 Nissan 240SX (S13)
  • 1988-1994 Nissan Silvia (PS13)
  • 1989-1998 Nissan 180SX
  • 1989-1994 Nissan 200SX (S13)

This product is for show use only and should not be used on public roads.
